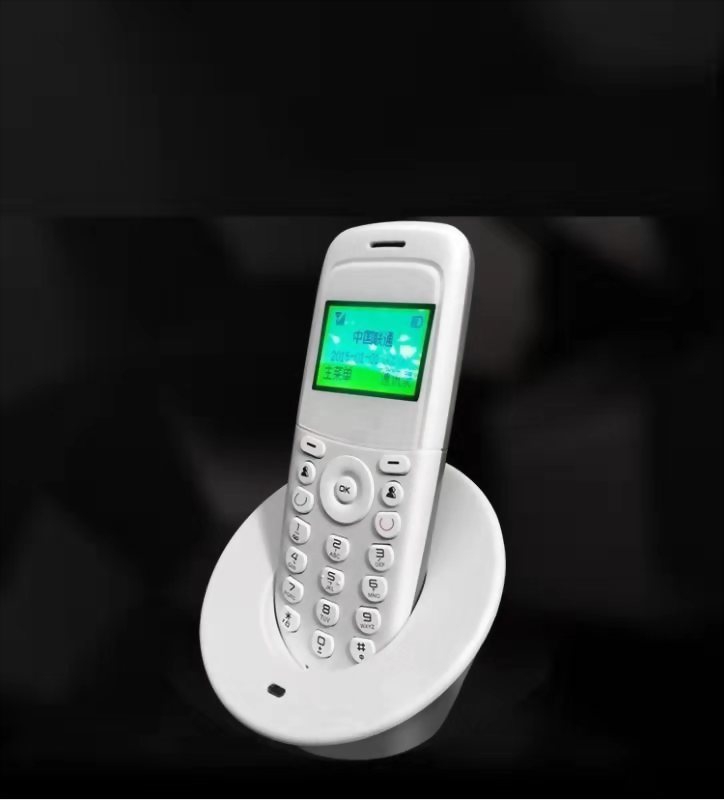

MaxComm 3G Cordless Phone MW-396

modelo : MW-396

MW-396 is a wireless fixed phone which supports UMTS/HSPA+: 850 MHz, 1900 MHz and 2100 MHz.Optional 900MHz

Basic features

Model Name

MW-396

Frequency Band

UMTS/HSPA+:

 850 MHz, 1900 MHz and 2100 MHz, Optional : 900MHz

 EDGE/GPRS/GSM:

 850 MHz/900 MHz/1800 MHz/1900 MHz

Technical Standard

l   EGSM/GPRS 3GPP Release 99 compliant

Operating Frequency:

UMTS/HSPA+:

 850 MHz, 1900 MHz and 2100 MHz

 EDGE/GPRS/GSM:

 850 MHz/900 MHz/1800 MHz/1900 MHz

Antenna Interface

Internal antenna

Internal Memory

1G+256 DDR

LCD

128*64 Pixels

External Interface

USB port

Standard USB 1.1, download SW

DC Connector

5V/1.0A

Power Switch

No power switch, Soft Power key

Battery Connector

3 PIN connector

SIM interface

Standard 6 pin,1.8v/3.0v SIM Card

Antenna Connector

 Internal

Environment Specification:

Operating Temperature

-10ºC to 40ºC

Storage Temperature

-25ºC to 75ºC

Operating Humidity

1095

1.1    Antenna

Items

Specification

Interface

Internal

Frequency bandwidth

824~894MHz; 880-960 MHZ; 1710--1880 MHZ 1850MHz~1990; 1920-2170 MHZ

Voltage standing wave ratio

<3.0

Input resistance

50Ω


Frequency (MHZ)

824

880

894

960

1710

1880

1900

2170

Gain(dBi)

2.1

2.0

1.7

1.8

2.4

2.5

2.7

2.8

1.2    Accessories

1.2.1  Battery

Items

Specification

Type

Li-Ion,

Capacity

800 mAh

Voltage

3.7V

Talk time

About 4 hrs (Depending on network)

Standby time

About 72 hrs (Depending on network)

1.2.2  Power Adapter

Item

Parameters

Input Voltage

AC , 100~265 V

Frequency

50~60HZ

Max input current

300mA

Output Voltage/Current

5 V/1.0A

Efficiency

>78%

2     Software Specifications

General Features

Network type

UMTS/HSPA+ /GSM/GPRS/EDGE

Band class

UMTS/HSPA+:  850 MHz, 1900 MHz and 2100 MHz

EDGE/GPRS/GSM: 850 MHz/900 MHz/1800 MHz/1900 MHz

Optional : 900MHz

Voice code

FR/EFR/HR/AMR

AMR Code

Support

SIM Tool Kit (UTK) Functions

Support

Language.

Portuguese,English, Spanish, Russian and so on

Input method

CSTAR,English Intelligent Text Input

Call log

20 pcs (dialed/ received/ missed).

SMS Storage capacity.

Up to 100 items in phone

Contact capacity

200 items in phone+ capacity in USIM

Group SMS

SupportSupport to send 20pcs SMS in one group

Alarm

Support

Clock

Support

Calculator,

Support

DTMF.

Support

Auto Redial

Support

Speed dial

Support

Caller ID

Support

Backlight Time

Support

Call duration

Support

LCD backlight adjustment

Support

Programmable ring volume control.

Support

Programmable voice volume control

Support

Hands- free mode

Support

Speaker volume control in hands free operation.

Support

Key tone volume adjustments

Support

Missed calls & incoming message indication on display

Support

Network Dependent Features

Call Forwarding

Support. Network Dependent.

Call wait/call hold

Support. Network Dependent.

Conference call

Support. Network Dependent.

Call barring

Support. Network Dependent.

Display

Key digit input display

Support

Banner Display

Support

Time Display (Date, Month, Year and Day of the week).

Support, the time and date format is adjustable

Operator name display

Support

Display icon:

RSSI Indication

Support

No Service/ Service Indication

Support

Voice call Indication

Support

Power status indicator

Support

Alarm Indication

Support

New SMS Indication

Support

Voice Message Indication

Support

Tone and Sound Generation

Tone type

MIDI

Busy tone

Support

Ringer tone

Support

Incoming call alert

Support

Ring tone volume adjustments

Support

SMS Receive Alert

Support

Keypad tone

Support

Lock function

Lock Cell

Support

Lock Operator

Support

Lock Pin / SIM Card

Support

Tools

Download tool

Support

Configuration tool

Support

3     Appendix A: Accessories List



Name

Number

Cordless Phone

1

Seat changer

1

User Manual

1

Adapter

1

Battery

1
